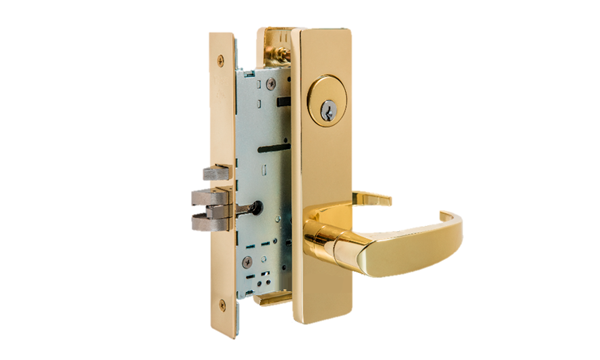

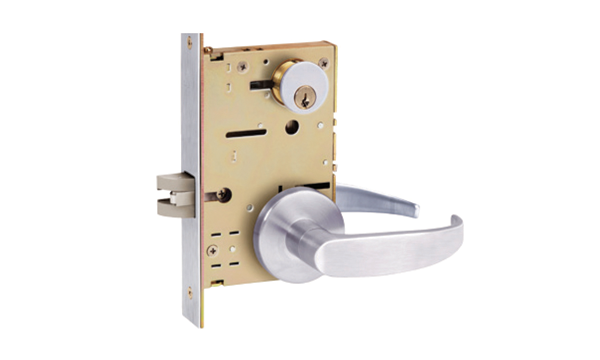

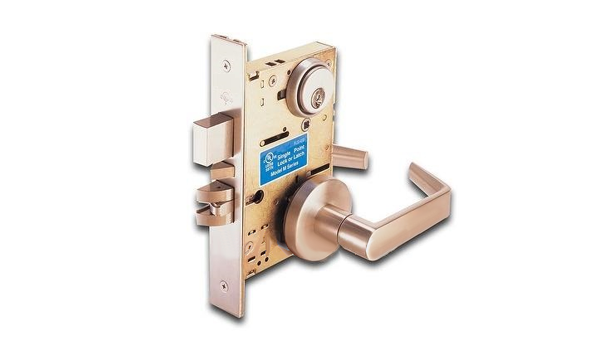

SCHM Series Mechanical Mortise Lockset Grade 1

Heavy-duty mortise locks meet ANSI/BHMA 156.13 Grade 1 standards. All our locks are field reversible and require only simple steps for changing the hand of lock for easy installation.

Reversible without disassembly
May retrofit other brand lock sets (consult factory)
Clutch for vandal resistance

Finishes Available:

• PB – Polished Brass
• SN – Satin Nickel
• SC – Satin Chrome
• CR – Polished Chrome
• ORB – Oil Rubbed Bronze

• PVD – Lifetime Finish

Clutch	Internal clutch provides vandal resistance by permitting lever rotation without retracting latch when locked.
Handing	SCHM Series locks are field reversible without disassembly.
Door Thickness	For use on 1 ³/₄″ (44 mm) thick door standard. Specify thickness if other than standard for up to 2 ¹/₄″ (57.15 mm) thick door.
Backset	2 ³/₄″ (70 mm).
Armored Front	1 ¹/₄″ x 8″ x ⁷/₃₂″ (32 mm x 203 mm x 6 mm) standard.
Case	3 ¹⁵/₁₆″ x 6 ¹/₁₆″ x ²⁹/₃₂″ (100 mm x 154 mm x 23 mm).
Bolts	³/₄″ (19 mm) throw stainless steel latch with anti-friction tongue. 1″ (25.4 mm) throw stainless steel dead bolt.

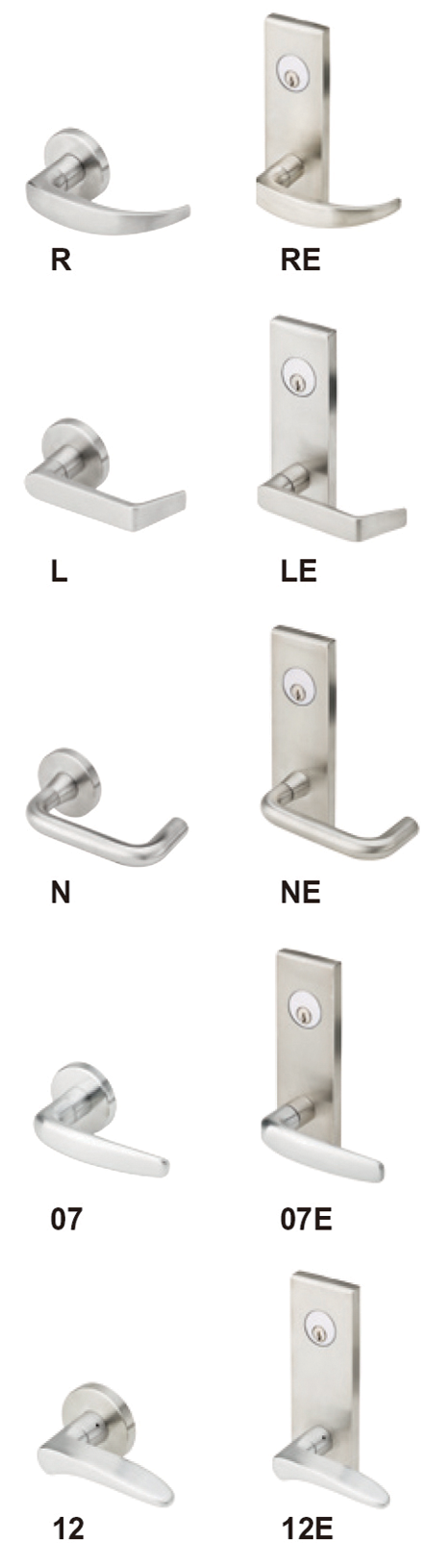

Levers	Forged brass or bronze and cast stainless steel.
Spring Cages	One or two heavy duty spring cages as required per function.
Rose	Heavy wrought reinforced brass, bronze and stainless steel.
Strike	ANSI curved lip strike 1 ¹/₄″ x 4 ⁷/₈″ x 1 ³/₁₆″ (32 mm x 124 mm x 30 mm) lip to center with dust box standard.

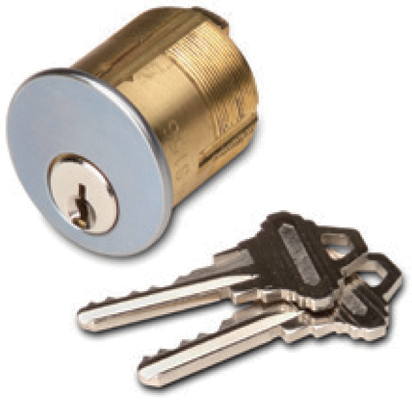

Cylinder & Keys Optional:	1 ¹/₈″ (28.58 mm) 6 pin with ‘C’ type keyway.
I-Core	Compatible with interchangeable core cylinders provided by others.

FUNCTION	SCH	ANS	DESCRIPTION
	SCHM1001	F01	Passage – Latch bolt retracted by lever from either side at all times.
	SCHM3004	F04	Office – Latch bolt operated by lever from either side except when outside lever is made inoperative by key outside or by turning inside thumb turn. When outside lever is locked. latch bolt is retracted by key from outside or by operating inside lever. Outside lever remains locked until thumb turn is return to vertical position or unlock by key. Auxiliary latch deadlocks latch bolt when doors closed.
	SCHM2005	F05	Classroom – Latch bolt retracted by lever from either side unless outside is locked by key. Unlocked from outside by key. Inside lever always free for immediate exit Auxiliary latch deadlocks latch bolt when door is closed.
	SCHM2007	F07	Storeroom – Latch bolt retracted by key outside or by knob/lever inside. Outside lever always inoperative. Auxiliary latch deadlocks latch bolt when door is closed.
	SCHM2009	F09	Apartment Entrance I Vestibule – Latch bolt operated by lever from either side except when outside lever is locked by key from inside. When outside lever is locked, latch bolt is retracted by key from outside of by operating Inside lever. Auxiliary dead latch.
	SCHM2413	F13	Corridor / Exit – Latch bolt operated by lever from either side. Dead bolt projected by key from outside and turn from inside. Operating inside lever retracts both bolts and unlocks outside.
	SCHM3420	F20	Entrance – Latch bolt operated by lever from either side, except when outside lever is made inoperative by toggle button. Dead bolt operated by key outside or turn inside. Key outside operates both bolts. Operating inside lever retracts both bolts and outside remains locked. Latch bolt is deadlocked when outside lever is made inoperative or when the dead bolt is projected. When dead bolt Is retracted, lever is unlocked by toggle button.
	SCHM1022	F02 F04 F22	Privacy – Latch bolt operated by lever from either side except when outside lever is locked by inside thumb turn. Operating inside lever, closing door or operating outside emergency release unlocks outside lever.
	SCHM0071		Single Dummy Trim – Lever on one side fixed by mounting bar.
	SCHM0072		Double Dummy Trim – Lever on both sides fixed by mounting bar.
	SCHM0075		Single Dummy Trim – Lever on both sides fixed. Includes lock chassis and armor front.
	SCHM0078		Double Dummy Trim – Lever on both sides. Includes lock chassis and armor front.

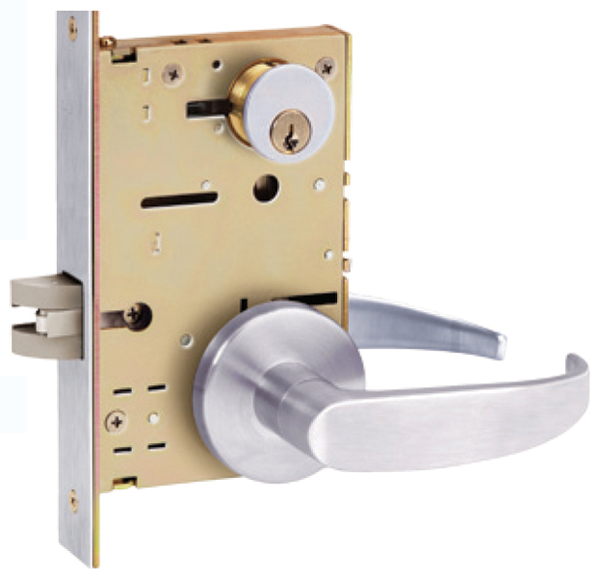

SCHM Series Options / Grade 1 / Mortise Lockset

Functions

SCHM1001 Passage
SCHM3004 Office
SCHM2005 Classroom
SCHM2007 Storeroom
SCHM2009 Apartment Entrance / Vestibule
SCHM2413 Corridor / Exit
SCHM3420 Entrance
SCHM1022 Privacy
SCHM0071 Single Dummy Trim
SCHM0072 Double Dummy Trim
SCHM0075 Single Dummy Trim with Chassis
SCHM0076 Double Dummy Trim Chassis

Handing

L Left hand
R Right hand

LR Left hand reversed
RR Right hand reversed

Finish

630 Dull Stainless (Standard)
605 Bright Brass
606 Dull Brass
611 Bright Bronze
612 Dull Bronze
613 Oil Rubbed Bronze
625 Bright Chrome
626 Dull Chrome
629 Bright Stainless Steel

SCHM Series locksets retrofit the following existing door preps of the following lock brands with rose or escutcheon trim.

Knob or lever trim mounting holes only may require relocation. See DHM7800 template.

• Schlage
• Corbin
• Lawrence

• Hager
• Cal-Royal
• Dorma

• Marks
• Sargent
• Arrow

SCHM Series locksets retrofits the following existing door preps of the following lock brands with escutcheon trim only.

Minor modification to the key cylinder hole position is required, and trim mounting holes may need to be relocated. See SCHM0 template.

• Falcon

• Yale

• PDQ
