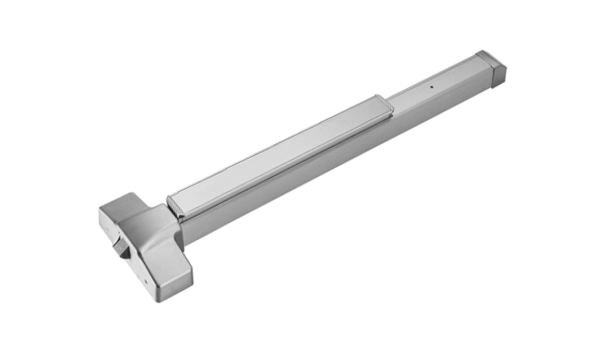

- SCH8610S heavy duty panic-rated rim exit devices with smooth housing are used for all types of single and double doors with mullion.
- The Exit devices are available in the following finishes:
US3, US4, US10, US10B, US26, US26D and US32D.
Panic-Rated Rim Exit Device:
- Mounted on the Door Surface: A rim exit device is mounted on the interior face of the door, with the bolt engaging the frame to secure the door.
- Spring-Loaded Latch Bolt: A spring-loaded latch bolt retracts automatically when the push bar is pressed, releasing the door quickly.
- Durable Construction: Made of materials like stainless steel or extruded aluminum to withstand heavy use in high-traffic areas.
- Safety Compliance: Certified by agencies like UL (Underwriters Laboratories) to meet standards for emergency egress.
Why Is Panic Hardware Required?
- Panic hardware is often mandated by building codes for certain types of buildings and areas, including but not limit to: schools, hospitals, commercial buildings, theaters and stadiums, etc.
Locking Mechanism
- Uses a rim-mounted latch that secures the door by engaging the door frame directly.
- The latch is surface-mounted, with a simpler mechanism compared to a mortise lock.
Mounting Configuration
- The device is mounted on the interior face of the door, with the latch engaging the strike plate on the frame.
- Easier to install as it does not require cutting into the door for the lock mechanism.
Smooth Housing
- Appearance: Sleek, modern, polished look.
- Durability: Durable but more prone to visible scratches compared with grooved housing.
- Applications: Low-traffic, aesthetic-focused settings.
