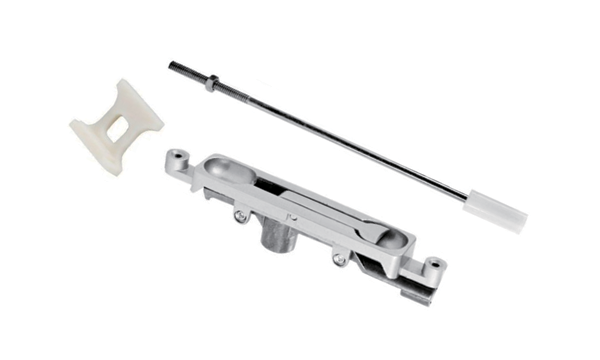

SCHFB2 FLUSHBOLT

  • 15/16″ x 41/4” radius faceplate
  • Positive “U” joint actuator with 7/8″ bolt throw
  • Available offsets:
    1/8″ and 1/4″ with a 7/8″ backset
  • Rod length designed for 12″ centerline face installation
  • Square nylon tip with beveled corners
    – fits into a 1/2″ square hole
  • Finishes Available:
    AL – Baked satin aluminum paint
    BK – Baked black paint
    DU – Baked storefront bronze paint

Ordering Information

SCHFB2 Flush Bolt (Includes guide)

  • 1/8″ ffset
  • 1/4″ offset

Specify: Model Number and Finish

Installation Guidelines

For optimal performance, follow these installation best practices:

  • Ensure Proper Alignment – Flush bolt aligns well with the strike plate to ensure smooth locking / unlocking.
  • Drill Clean Cutouts – Use sharp drill bits to create precise cutouts for the faceplate and bolt mechanism.
  • Securely Fasten Screws – Over-tightening can strip the screw holes, loose screws can cause misalignment.
  • Test the Movement – After installation, engage / disengage the bolt several times to check smooth operation.
