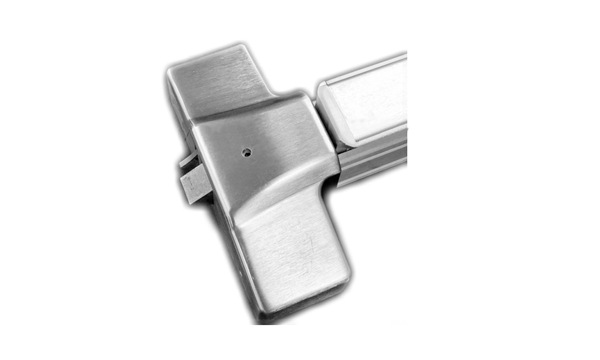

SCH8850S Heavy Duty Panic-Rated Concealed Vertical Rod (CVR) Exit Device / Groove Housing / Grade 1

SCH8850S heavy duty panic-rated concealed vertical rod (CVR) exit devices with groove housing are used for all types of single and double doors.
These CVR models cannot omit the bottom rod and are not suitable for use as Less Bottom Rod (LBR) devices.
The Exit devices are available in the following finishes: US3, US4, US10, US10B, US26, US26D, US32D.

Quiet Solution (Option)

A mechanical damper controls the motion and reduces the noise associated with the exit device operation to provide customers with a quieter environment.
Specify “Quiet Solution” when ordering.

Panic-Rated SVR Exit Device:

Mounted with Vertical Rods.
Two-Point Locking.
Spring-Loaded Latches.
Durable Construction.

Why Is Panic Hardware Required?

Panic hardware is often mandated by building codes for certain types of buildings and areas, including but not limit to: schools, hospitals, commercial buildings, theaters and stadiums, etc.

Grooved Housing

Appearance: Textured, industrial look.
Durability: More resistant to wear and tear compared with smooth housing.
Applications: High-traffic, utilitarian environments.
Cost: Slightly lower compared with smooth housing.
Maintenance: Hides damage but harder to clean grooves.

Device Lengths	Short (36″): 33 ⁵/₃₂″ (842 mm) Long (48″): 45 ¹/₈″ (1146 mm)
Door Widths	36″ – For 29″ to 36″ (736 mm to 914 mm) door size 48″ – For 33″ to 48″ (838 mm to 1219 mm) door size
Minimum Stile Width	4 ¹/₄″ (107 mm)
Latch Bolt	Top latch – 5/8″ (16 mm) throw, can be deadlocked automatically Bottom Latch – 5/8″ (16 mm) throw, held retracted during door swing
Strikes	Top – 812 (panic), 822 (fire). Bottom – 815 (panic), 825 (fire)
Dogging Kit	Panic device – Hex key dogging (RD) standard Fire device – No mechanical dogging (ND)
Dogging Options	Cylinder Dogging (CD) Less Dogging (LD)
Mounting Fasteners	Panic device – Machine screws furnished for device standard . (SNB furnished for top & bottom latches). Fire device – Sex nuts and bolts (SNB) supplied standard hardware. SNB are required to use for wood doors, order SNB separately.
Mounting Height	Device centerline from finished floor is 40″ (1016 mm) standard
Door Opening Height	Standard door height is 7′, 8′ is available
Vertical Rods	1/2″ (13 mm) diameter tubular with rod guides. Top rod has two pieces to connect for accommodating 7′ 8′ door. Bottom rod is one piece, its length is 31 ¹/₄″ (794 mm)
Projection	Pushbar Neutral: 3 ¹/₁₆″ (78 mm), Pushbar Depressed: 2 ¹⁹/₃₂″ (66 mm)

The devices are precut for 36″ (914 mm) and 48″ (1219 mm) wide doors (standard shipping size). No additional cutting is necessary.

Short (36″): 33 ⁵/₃₂″ (842 mm)
Long (48″): 45 ¹/₈″ (1146 mm)

For narrow doors, trim the “A” portion to fit a door width minus 2″ (51 mm).

Standard vertical rods fit 7′ (2134 mm) panic exit doors or 8′ (2438 mm) fire exit doors. For taller doors, specify the height when ordering to receive a longer top rod.

Top – 812 (panic), 822 (fire). Bottom – 815 (panic), 825 (fire)

Parts Material

1. Mechanism Housing (or device body)	Extruded aluminum
2. Push Bar	Extruded aluminum
3. End Cap	Nonferrous alloy
4. Dogging Plate (or device body)	Extruded aluminum
5. Push Bar Trim	Brass, stainless steel, steel
6. Push Bar End Cap	Nonferrous alloy
7. Chassis	Plated steel
8. Top Vertical Rod & Rod Guide	Brass, stainless steel, steel
9. Latch Assembly Cover	Nonferrous alloy
10. Top Latch, 16 mm (5/8″) throw	Stainless steel
11. Auxiliary Guarded Latch	Stainless steel
12. Latch bolt, 3/4″ (19mm) throw	Stainless steel
13. Bottom Latch, 16 mm (5/8″) throw	Stainless steel
14. Bottom Vertical Rod	Strong aluminum tube
15. Chassis Cover	Nonferrous alloy or stainless steel

Device Length

The devices are precut for 36″ (914 mm) and 48″ (1219 mm) wide doors (standard shipping size), no additional cutting is necessary.

Short 36″: Device Length is 33 ⁵/₃₂″ (842 mm) for 3′ door use, with short push bar.
Long 48″: Device length is 45 ¹/₈″ (1146 mm) for 4′ door use, with long push bar.

For narrow door installation, cut device “A” portion to door width minus 51 mm (2″) minimum to fit properly.

Standard vertical rods fit 7′ (2134 mm) panic exit doors or 8′ (2438 mm) fire exit doors. For taller doors, specify the height when ordering to receive a longer top rod.

UL/cUL Listed : UL listed as Panic Exit Hardware or 3-hour Fire Exit Hardware
ANSI Certified : Devices are ANSI A156.3 – 2014 Grade 1
