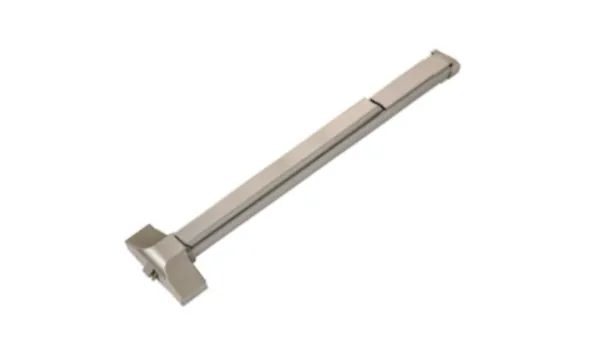

- Non-handed, wide stile and economy design.
- Fire rated devices must be installed on the fire labeled doors.
- Latch bolt deadlocking.
- It fits for 1-3/4″(44.5mm) thick standard LHR/RHR hollow metal and wood doors
- 3/4″(19mm) throw latch bolt
- Hex key Dogging is standard
- Material: Stee, Stainless Steel
- Finishes: US2B, US20A, US32D
- Short 32-11/16″(830mm)
- Long 44-23/32″(1136mm)
- For 35″ and 48″ wide door use
- Standard vertical rod device accommodates 7′ panic exit device or 8′ fire rated exit door

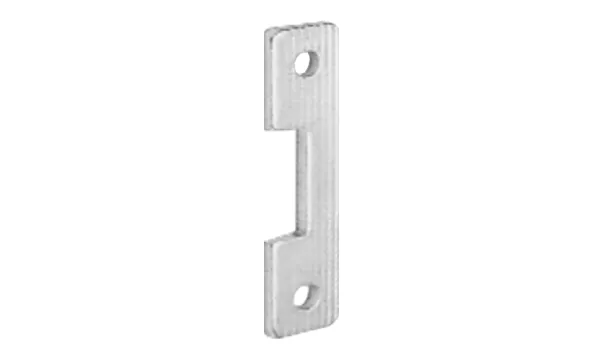

SCH531 Strike Shim
Furnished with SCH532 strike together. This shim is 1/8″ thick for prepare doors with 1/2″ stop, it is used to obtain correct distance between the device latch and the surface applied strike when the stop is 1/2″ high. If the frame has 5/8″ stop, then this shim is unnecessary.Steel Plated.

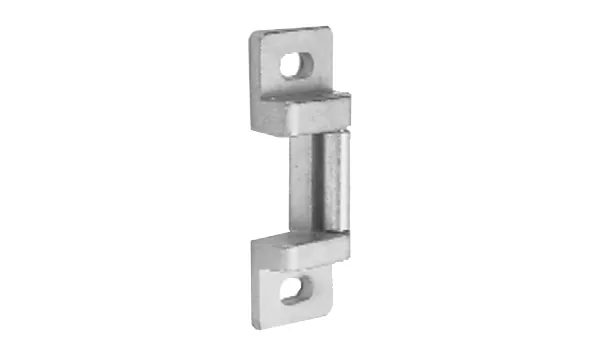

SCH532 Panic Rim strike
Surface applied. Standard on SCH5000 Series panic rim exit devices. Stainless Steel, With a plated roller.

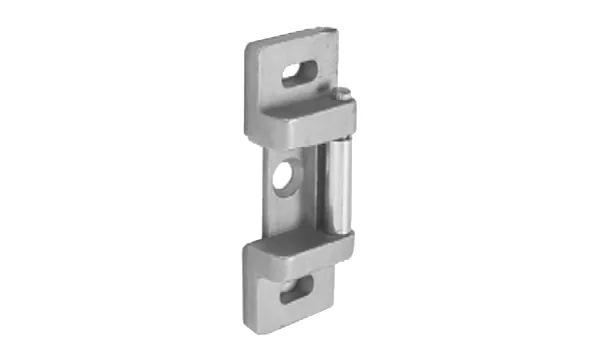

SCH533 Fire Rim Strike
Surface applied. Standard on SCH5000 Series fire rim devices. It is 100% stainless steel including a roller
Parts Name
1.Auxiliary Guarded LatchLatch Bolt
2.Chassis Cover (or called Head Cover)
3.Push Bar
4.Dogging Plate
5.End Cap
6.Mechanism Housing ( or called Device Body)
7.Top Latch
8.Latch Assembly Cover
9.Top Vertical Rod
10.Rod Guide
11.Chassis
12.End Cap Bracket
13.Bottom Vertical Rod
14.Bottom Latch
Device Length
The device lengths are precut for 36″ and 48″ wide door use (standard shipping size),no additional cutting is necessary.
Short 36″: Device Length is 33-15/32″ (850mm) for 3′ door use, with short push bar. Long 48″: Device length is 44-3/4″ (1137mm) for 4′ door use, with long push bar.
For narrow door installation, cut device “A” portion to door width minus 2″ minimum to fit properly.
Our standard vertical rod accomodate 7′ panic exit doors or 8′ fire doors, specify door height if greater than standard size when ordering one special longer top rod_will be furnished.
- ANSI 156.3 – 2020 Grade 1.
- UL305 Standard for the Panic Exit Devices Hardware
- UL10C Standard for the Fire Rayed Exit Hardware
